$79,000
Delivered and tuned in your home. Built in Portsmouth, NH
A five-axis racing simulator hand-built and tuned in Portsmouth, NH. Delivery included within 250 miles of Portsmouth.
3 years bumper-to-bumper warranty on every component, including the 57-inch display. Every claim handled from in-house stock.
3 years of premium support: phone and screen-share, answered by the person who built your system.
5 years of annual in-person maintenance visits to your rig.
Unlimited custom motion profile tuning, on request, for as long as you own the rig.
Tuned by measurement, not feel

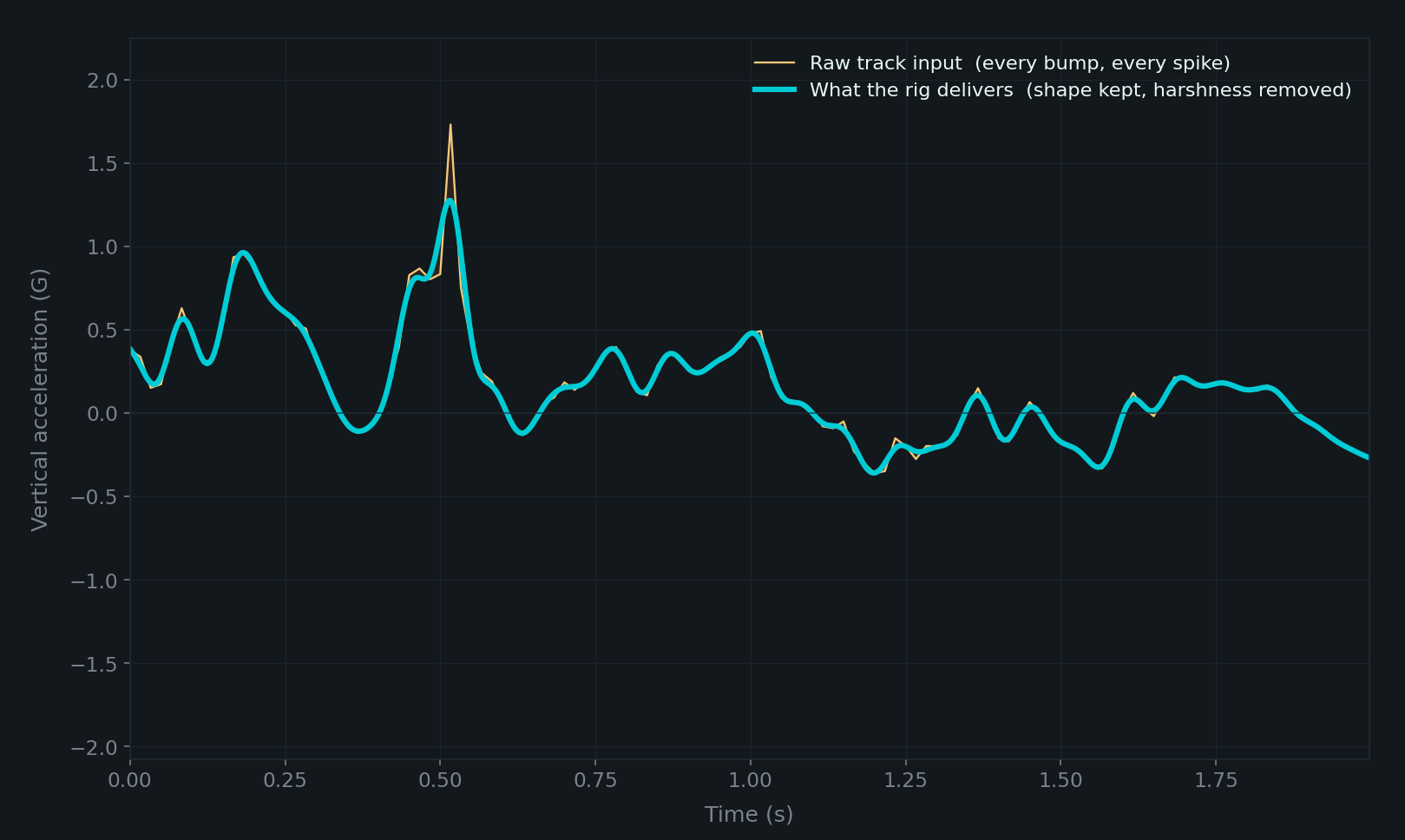

A gyroscope on the platform records what my test rig actually does. We compare that recording to the game's physics log and tune until the two curves match without any harshness.
Every profile ships measured. Every rig is identical to ours.

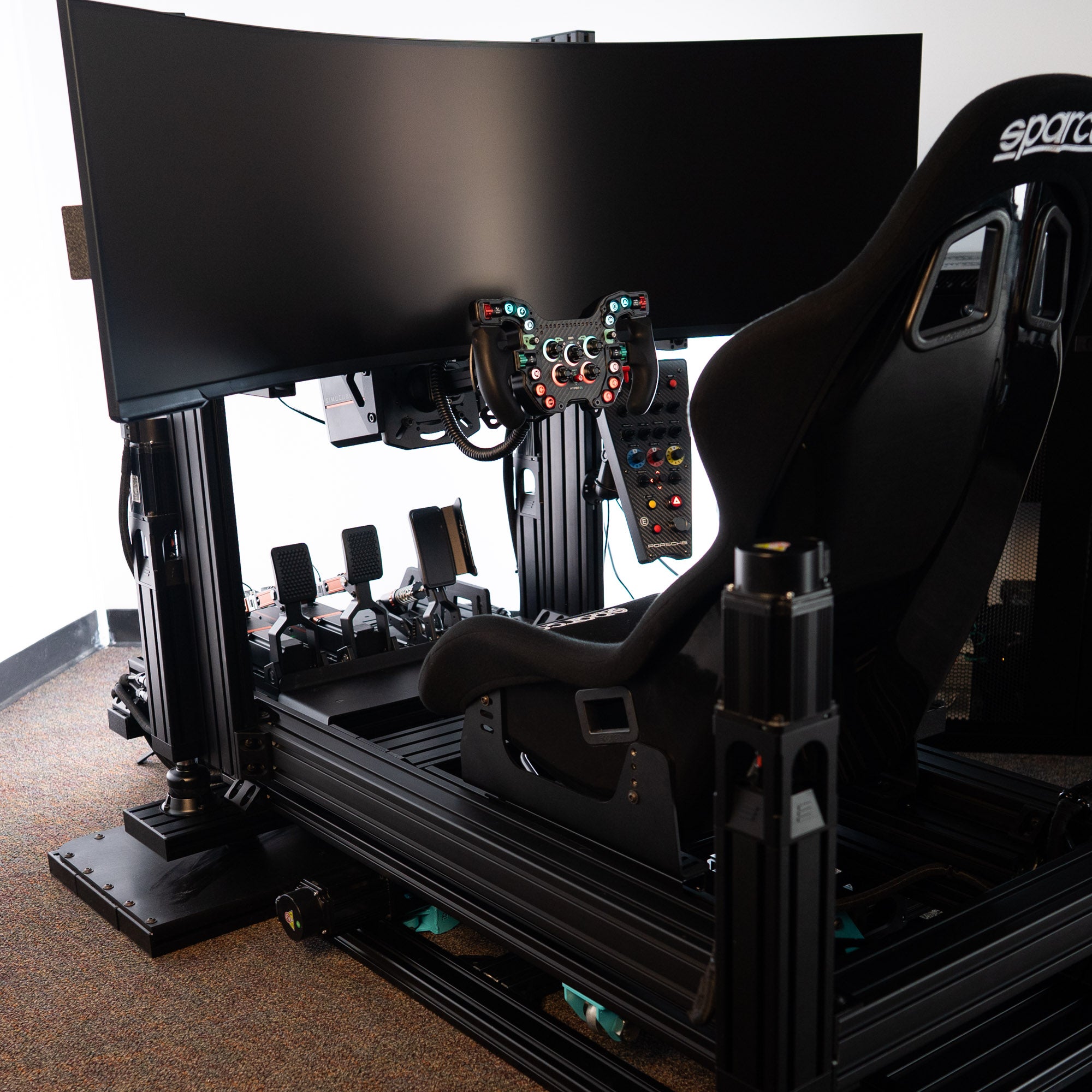

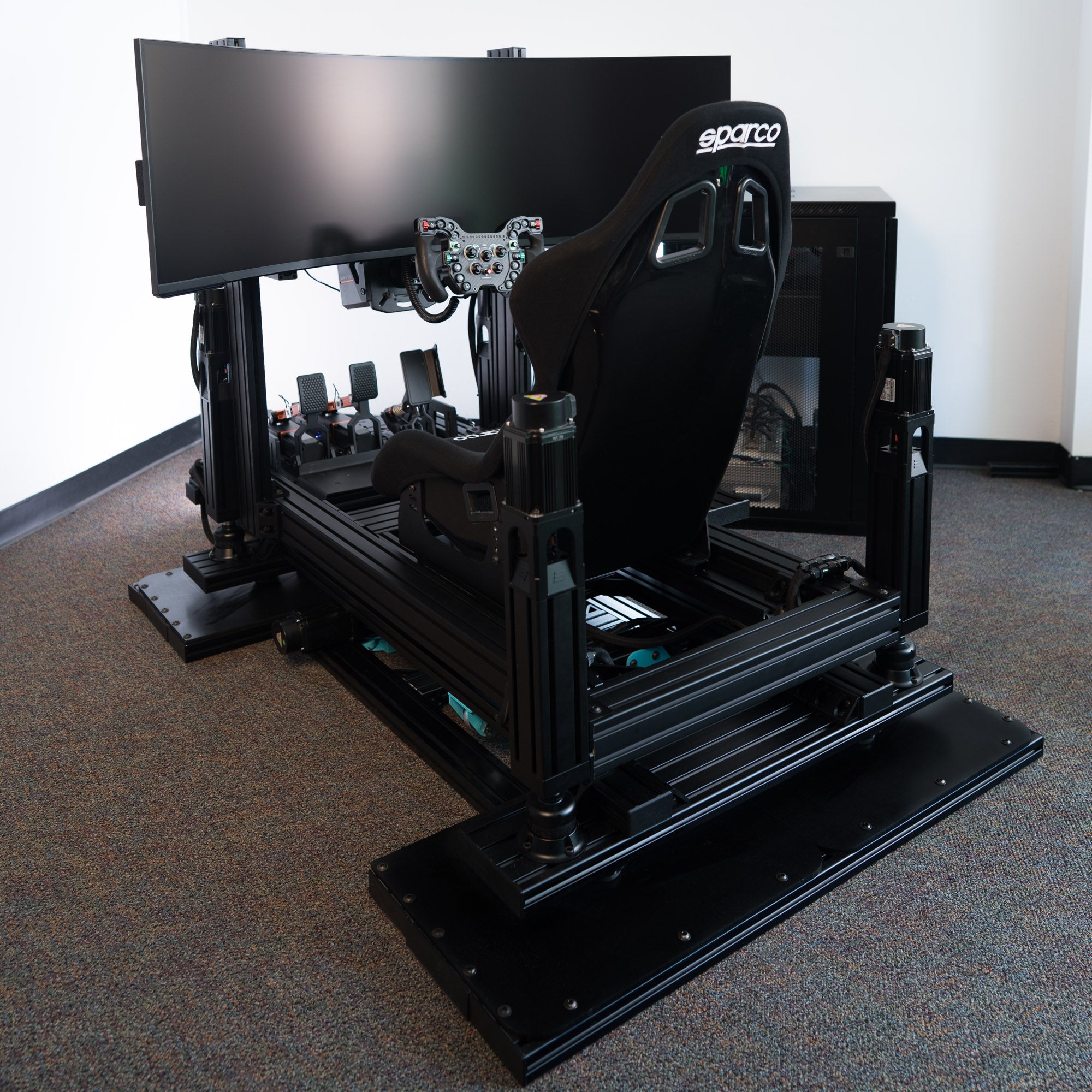

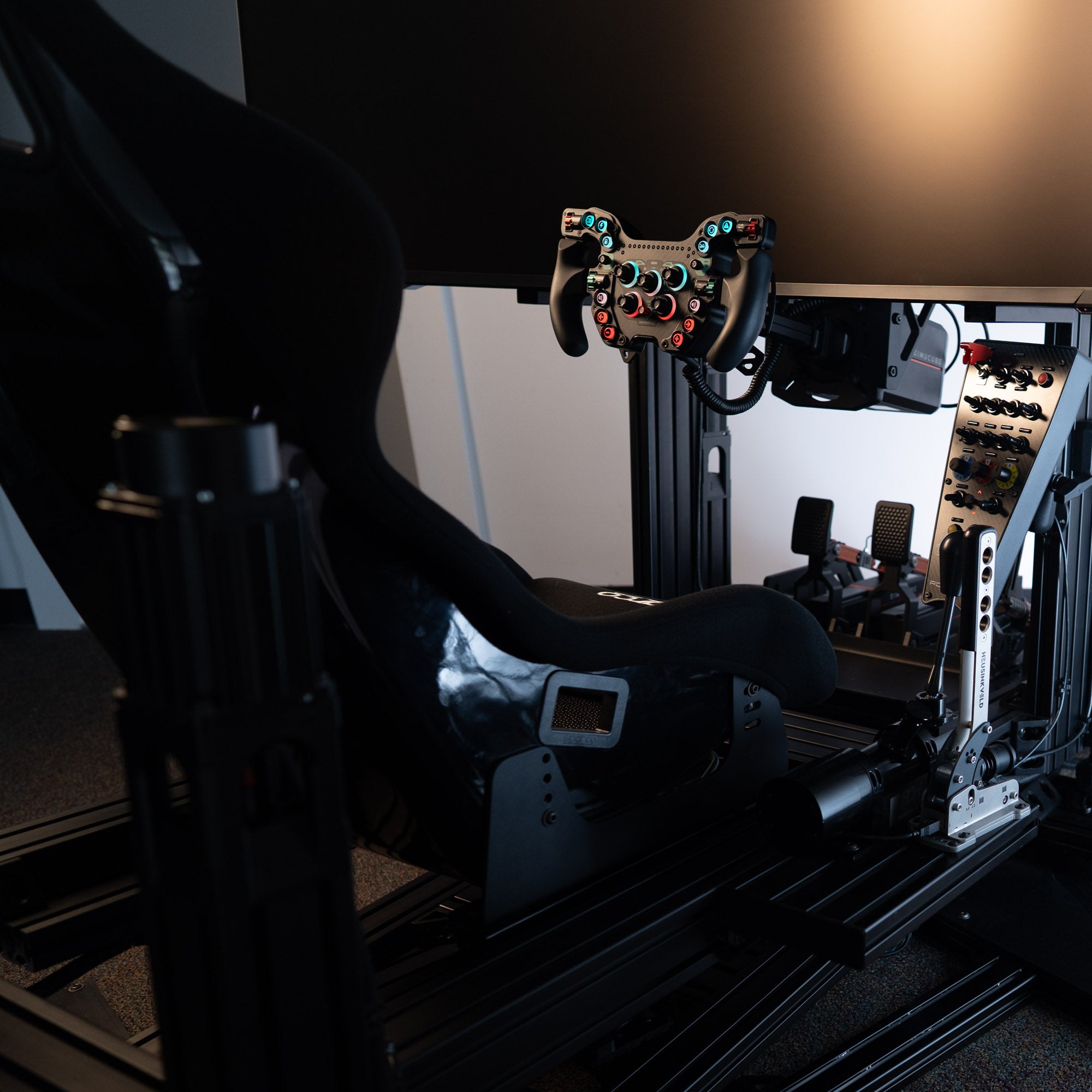

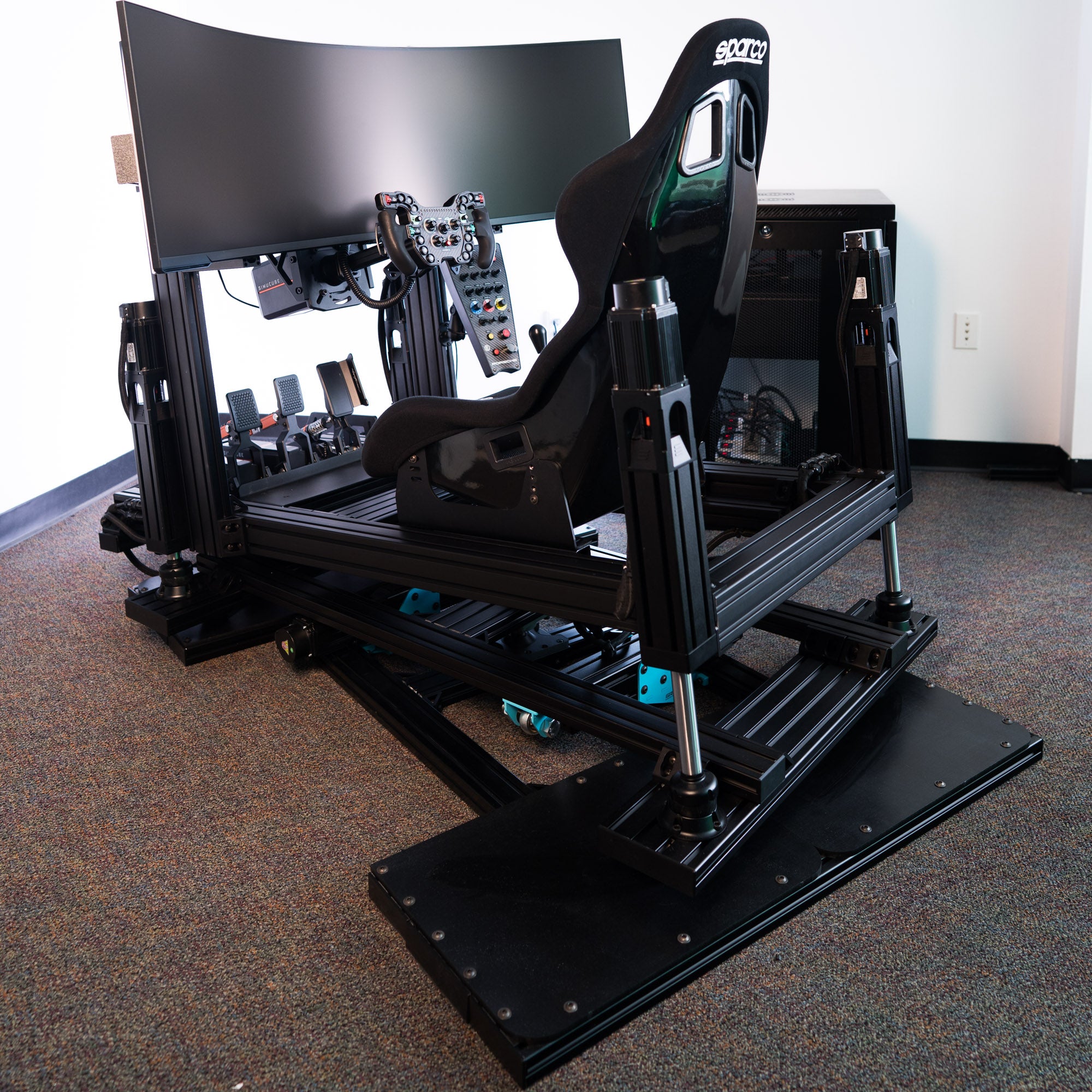

The Motion Platform
- Five-axis servo-driven motion optimized for car dynamics
- Heavy-gauge aluminum extrusion frame and gussets throughout
- Every structural bolt is torqued, thread-locked, and coated for anti-corrosion
- Every cable wrapped in braided loom, hand-bundled to the frame
- Frame, pivot, slides, and brackets designed in-house

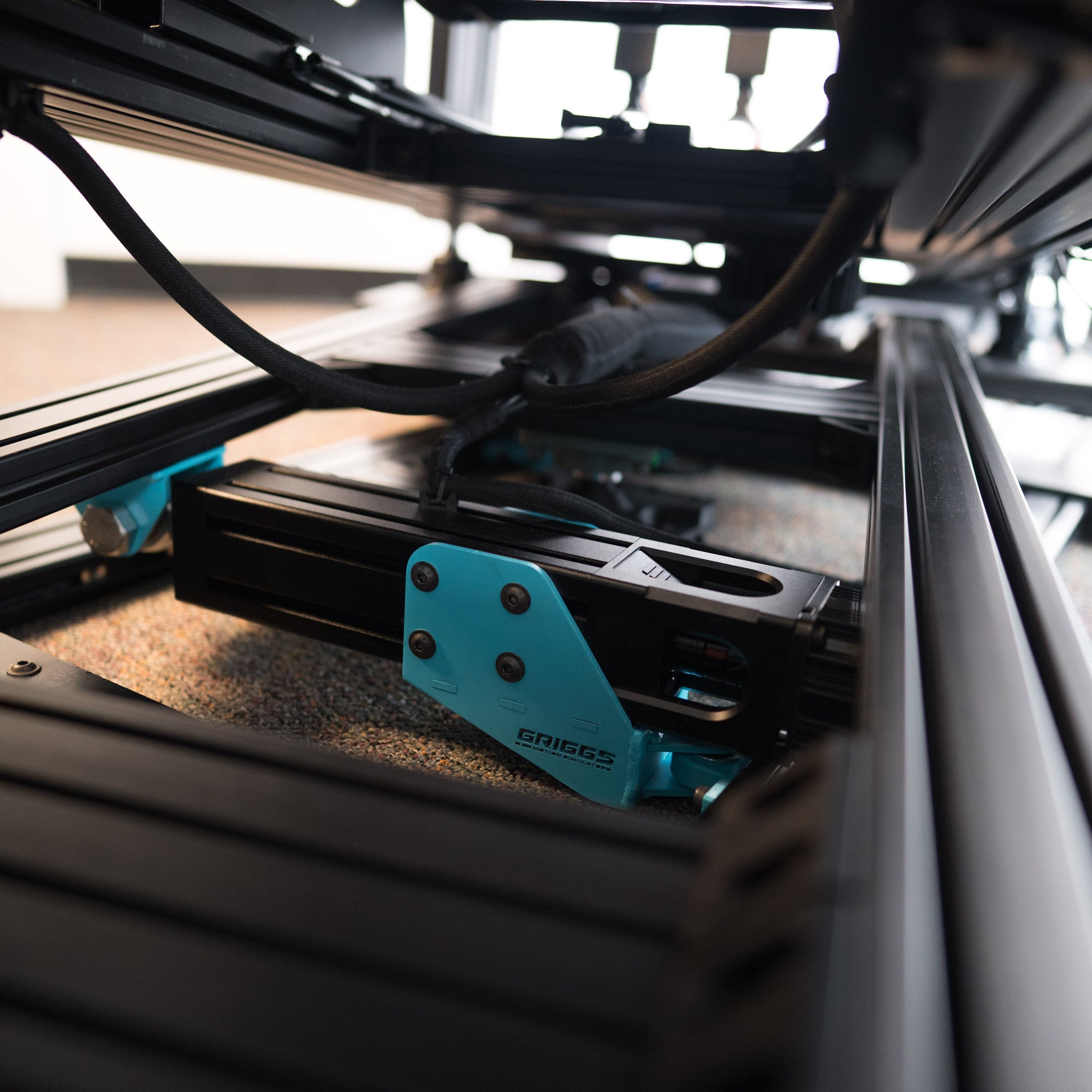

- Traction-loss brackets and connectors machined to our spec, over-built on purpose
- Roughly 8x8ft clearance
- Platform weight: 590lbs
- Max driver weight: 300lbs
- Runs on a standard 15-amp outlet

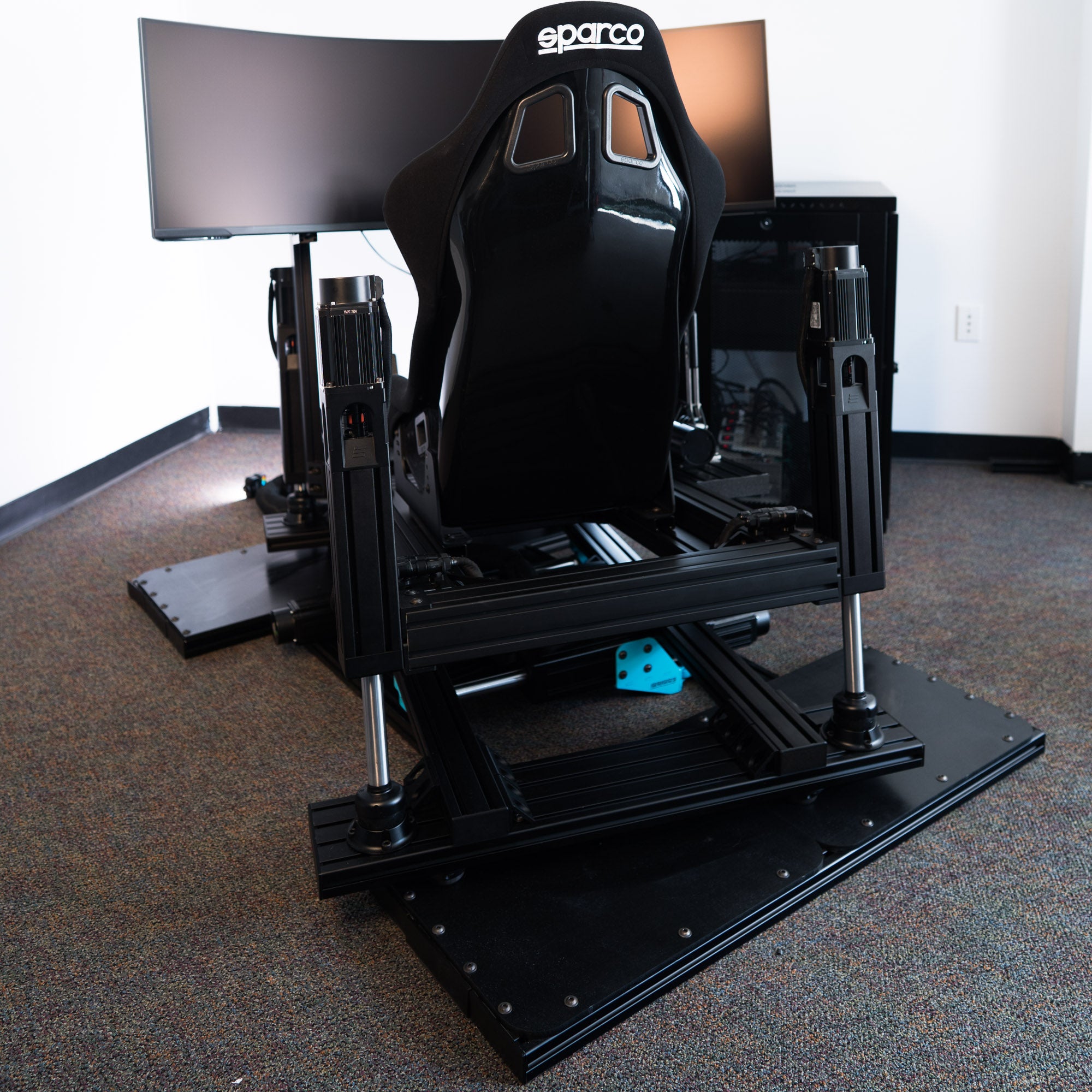

Range of Motion:
- 12° pitch
- 24° roll
- 30° yaw
- 150 mm sway
- 150 mm heave
The Steering

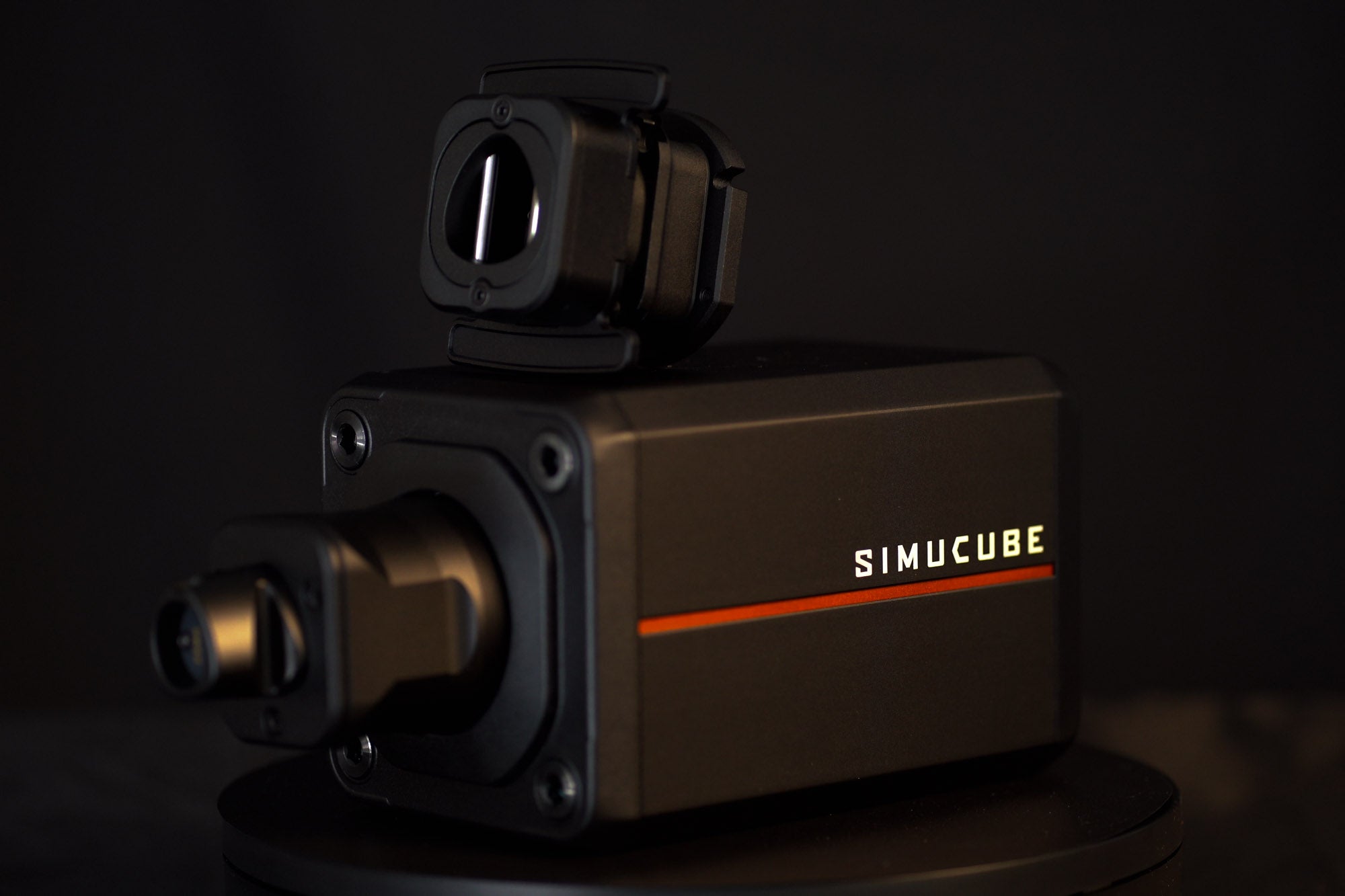

Simucube 3 Pro direct-drive wheelbase. 25 Nm peak torque. Quick-release hubs and mounting accessories configured for the platform.
Two high-end wheels are included. Choose any two from the stocked selection at the studio. Most sim-compatible wheels can be ordered if they’re not in stock. We’ll confirm availability and any pricing difference during your studio visit.
Stocked wheels:
- GSI: GT, round, and prototype-style wheels
- VPG: Porsche and Ford Mustang replica wheels
- Asher Racing: B24-SC button plate and choice of wheel rim
The Pedals

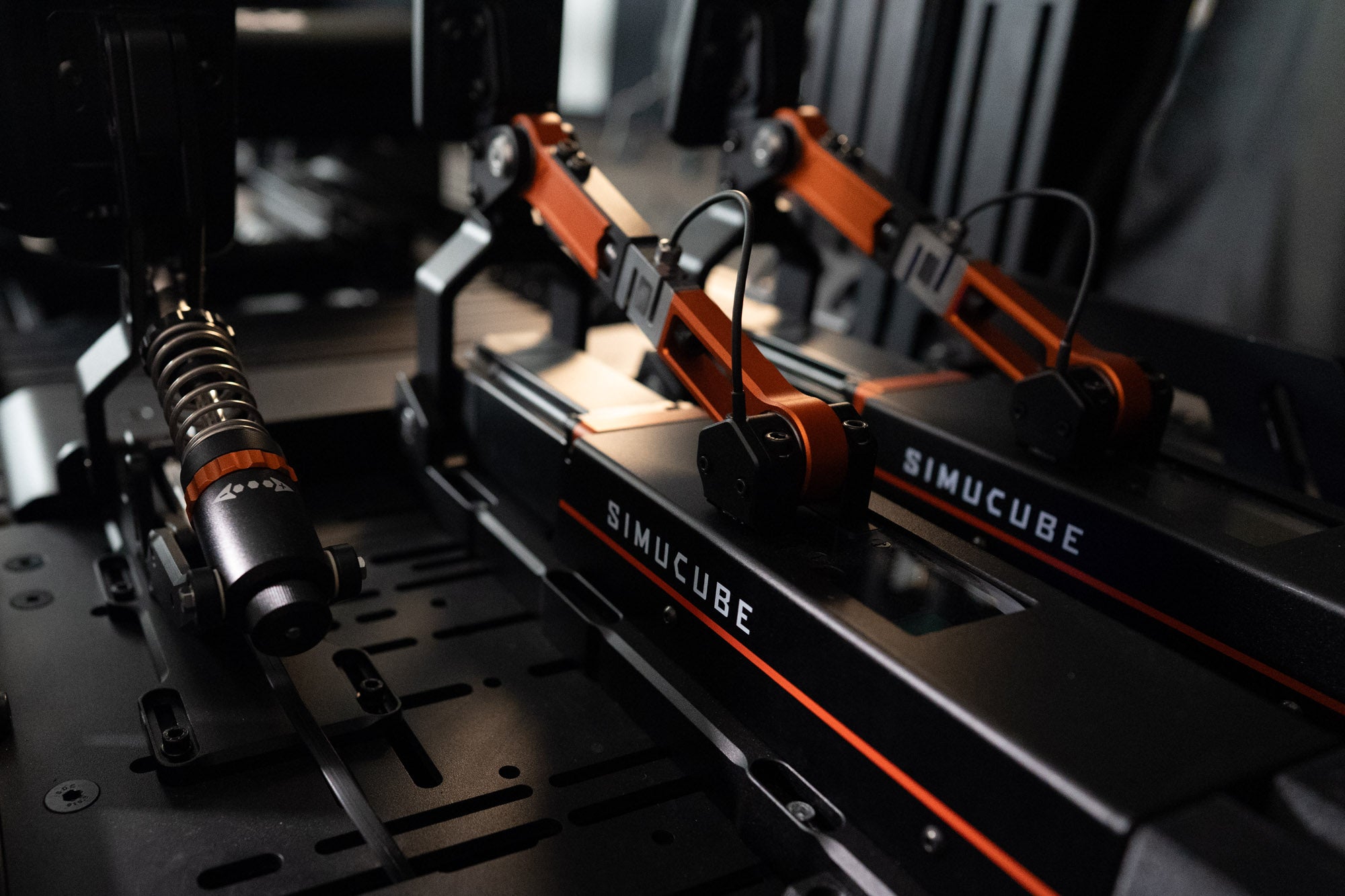

The brake and clutch are both Simucube ActivePedal Ultimates. Force, travel, and response curve are tuned per car, so each vehicle gets its own pedal feel.
The throttle is a Simucube Co-Pedal: passive, with mechanically adjustable resistance.

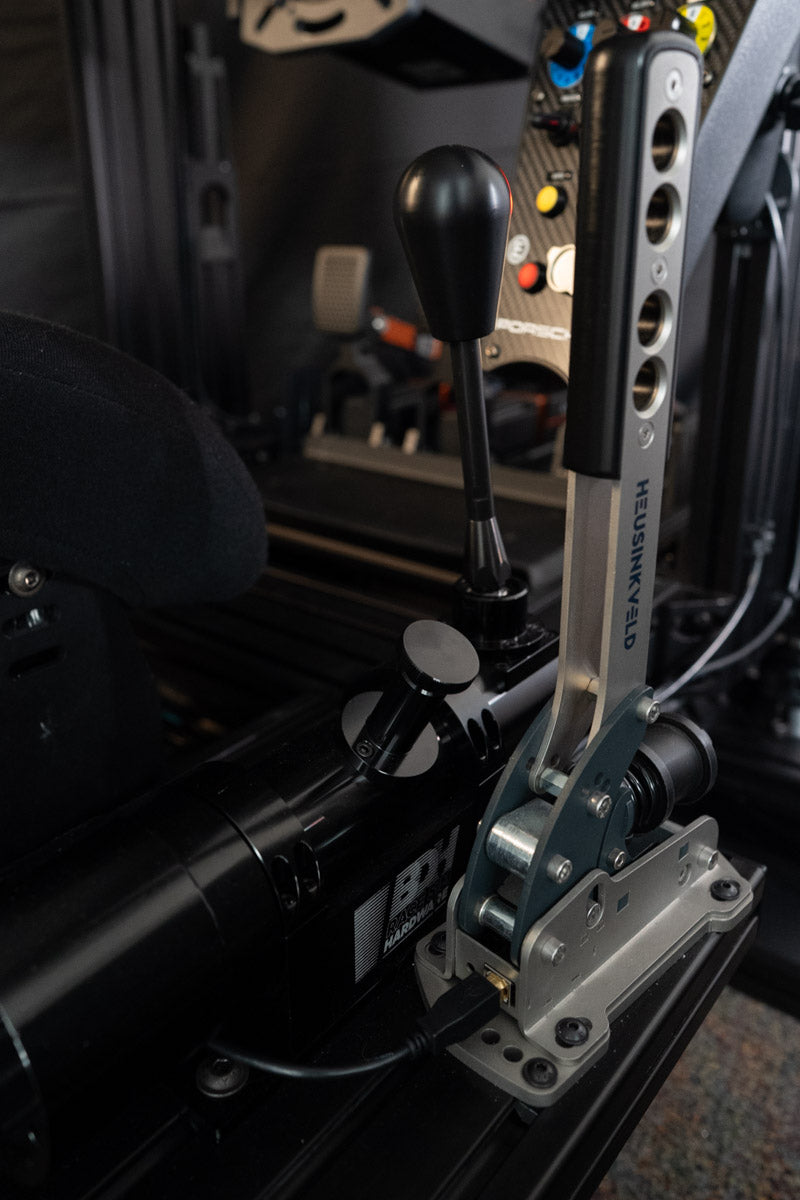

The Shifter and Handbrake
The shifter is a BDH H2SQ. A mechanical mode collar physically switches between H-pattern and sequential. Each mode has its own shaft, lock, and feedback path. Hand-built in France.
The handbrake is a Heusinkveld Handbrake v2. Tunable in firmness for rally or drift applications.
Specs:
- BDH H2SQ H-pattern and sequential shifter
- Heusinkveld Handbrake v2, 120kg load cell
The Computer
Ryzen 9 9950X3D with high-speed, low-latency memory. NVIDIA RTX 5090. NVMe storage rated for sustained read speeds. Noctua fans across every cooling point.
Twenty years of enterprise IT and cybersecurity work behind every choice. No bottlenecks. Drives dual 4K at a consistently high frame rate.
Specs:
- AMD Ryzen 9 9950X3D processor
- NVIDIA RTX 5090 graphics
- Low-latency DDR5 memory
- PCIe 5.0 NVMe storage
- 1200W+ power supply
- Noctua cooling across the system
- Quiet under sustained load

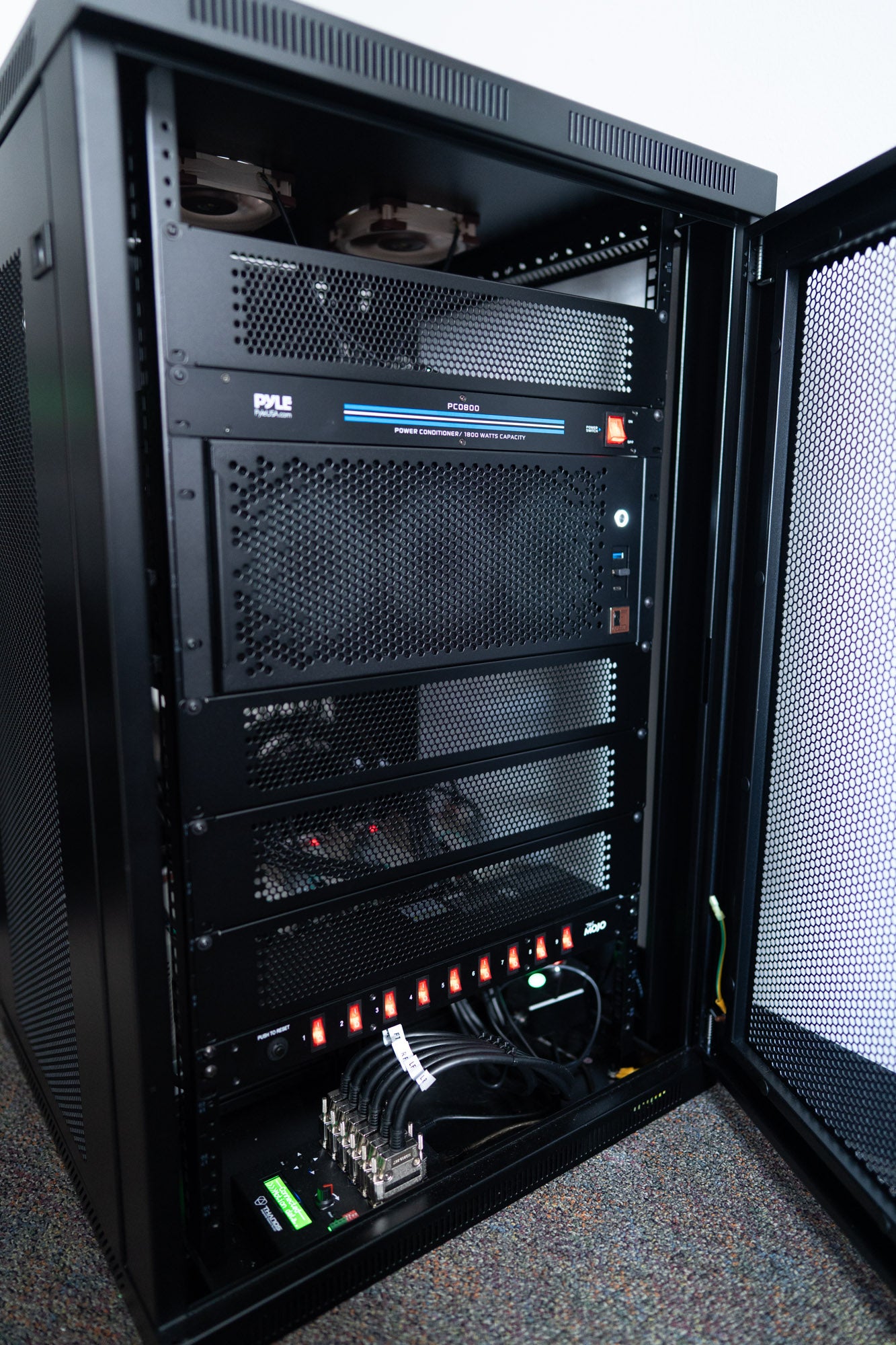

- 15U server enclosure included
- Separate power conditioners for computer and actuators
Button Box
Button box with dedicated controls for motion tuning, pit strategy, and media. Pre-mapped before your first lap. Every control in the same place every time you sit down.
Display
Samsung Odyssey Neo G9 57-inch. Dual 4K resolution across one curved Mini-LED panel. Approximately 120° field of view in iRacing matched to your seating distance.
Software and Sims
iRacing, Assetto Corsa, Le Mans Ultimate, Assetto Corsa Rally, and Assetto Corsa Evo installed. One year of iRacing with $500 credit. Motion profiles tuned for most major sims and car classes.
The Frame
Heavy-duty 40 series aluminum extrusion throughout. Structural gussets and brackets in the same series. High-quality fasteners torqued to spec with threadlocker. Rigid under full motion, quiet under load.
What Ownership Looks Like
Warranty
- Three-year bumper-to-bumper warranty on every component, including the monitor.
- We warranty all parts in-house, no long waits.
- Coverage extendable beyond year three.
- Covers the original owner. The warranty is built around the relationship, not the hardware.
- Every component individually replaceable.
Support
- First-90-day check-ins to tune the motion profiles to how you actually drive.
- Phone and screen-share support, answered by the person who built your system.
- Every update is tested on the shop rig first.
- Annual preventative service visit at your rig: firmware, inspection, tuning.
- Designed for you to get the most out of your simulator.
- New motion profiles released regularly, free for every owner.
The Process
01
Talk to Dan first
A short phone call with Dan, the founder and the person who builds every rig. He'll cover whether your space can accept the rig, what the build includes, technical questions about motion and installation, and whether a build slot makes sense for your timeline. No pitch.
02
Drive It Yourself
If we're a fit on the call, you come to the studio near Portsmouth, New Hampshire. We load your favorite car into the simulator. Bring anyone you'd like. The rig speaks for itself.
03
Configure Your Build
While you're in the studio, you choose the steering wheel, seat, pedals, and display. We keep examples of every option on hand so you can feel them before you decide.
04
We Build It
Build starts when payment clears. Built in Portsmouth, NH. Every bolt torqued to spec, every cable managed and shielded. About four weeks. Custom powder coating available in any color for an additional lead time.
05
Commissioning Day
Specialty movers deliver the rig to your home. Our engineer arrives the same day to assemble, tune, and walk you through the system.
Commissioning Day.
The rig is built, tested, and driven in Portsmouth. When we're satisfied, we schedule the delivery.
Specialty movers transport it from the studio to your home with the care they'd give a piano. They move it into the room you chose, set it in place, and inspect for transit damage.
Our engineer arrives the same day. Final assembly, motion calibration, and walkthrough. You sit in the rig. We cover every button, every setting, every adjustment. You drive while we tune to your preference.
